Strain analysis methodologies - Breddin method

Consider an array of fossils with bilateral symmetry

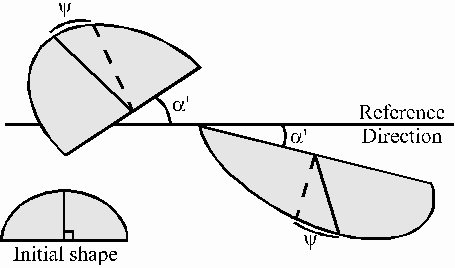

Pick a fossil and measure the orientation (a') of its base relative to a reference direction (e.g. N).

Measure the angular shear (Y) and shear strain (g) implied by the deformed axis of bilateral symmetry.

Plot a graph of g against a'.

Compare (via an overlay or replotting) the plot with a standard Breddin Graph, which has an origin at zero a' (the orientation of the X axis of the strain ellipse) and is contoured in terms of strain ratio (Rf).
