Imbrication in the Pipe Rock

Imbrication in the pipe rock Stream 3 Stream 2

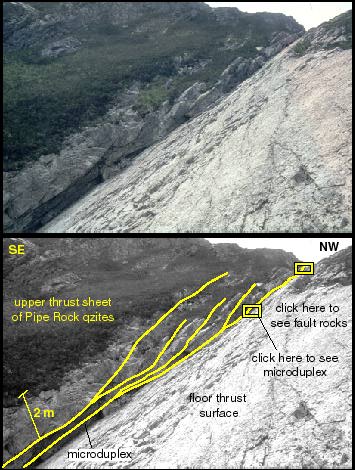

Finer scale imbrication characterises the internal structure of the large-scale slices of Pipe Rock on Conamheall. Individual bed groups (as above) together with finer duplexing of thin beds (detail) are the key. The fault rocks are restricted to a few cm of the thrust planes.
