Ramsay 2

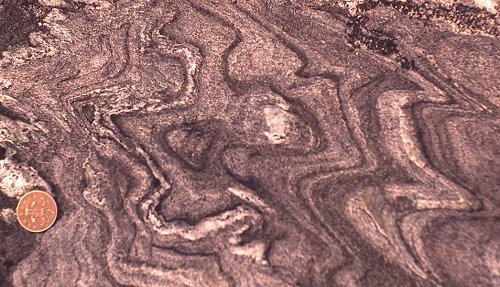

A "type 2" fold interference pattern which generates rather strange "winged" or "butterfly" outcrop patterns. Looking down on the outcrop, this pattern results from a recumbent first phase of folding (with hinges trending up and down the screen) followed by upright folds trending L-R. Loch Monar, Scotland.
